THE Q-LOC BURIAL WIRE CONNECTOR
Perfect for Low Voltage Lighting – Great for Irrigation Connections
- Strongest Strain & Tension Relief in the Industry
- Eliminates Loose Connections
- Move Fixtures Worry Free
- Fast, Simple to Use and More Reliable
- Camouflages in the Landscape
- Connectors group together for a clean look

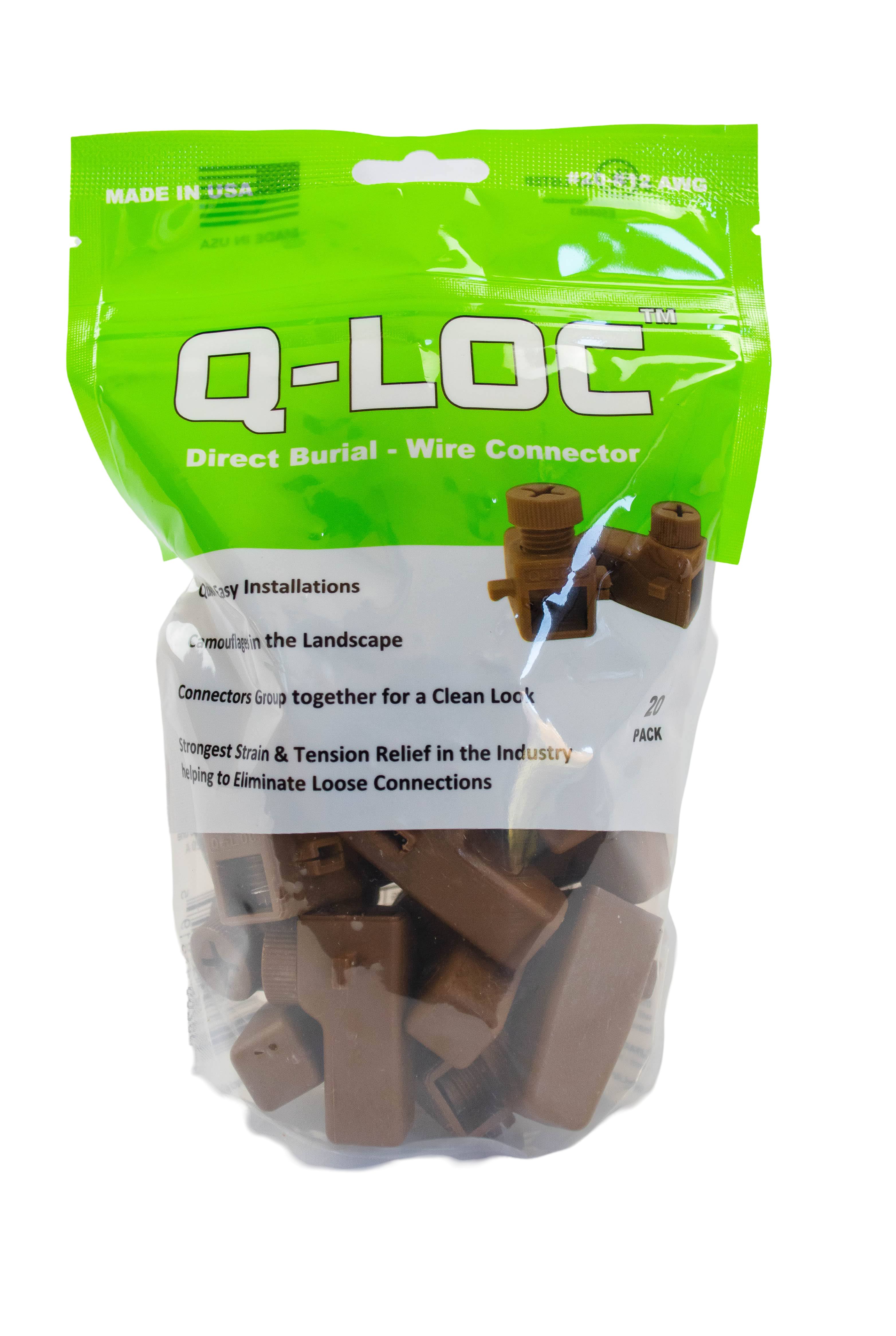

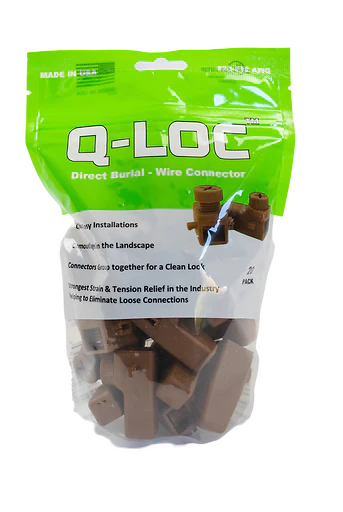

Q-Loc Direct Burial Connector
The Q-Loc™ Wire Connector makes your connections secure, easy to install, I cleaner. The innovative locking bolt quickly holds your wire while allowing for e pulling when moving fixtures for final placement. Since every connection ds two connectors, we designed ours to snap together for a clean-looking installation. The Q-Loc’s ability to group together and earth tone color help it to in the landscape.
Part Numbers: • NLQ-LOC (20 Pack) • NLQ-LOC10 (10 Pack) • NLQ-LOC50 (50 Pack)
US Patent: 9425545
How to use the Direct Burial
Lighting Connector
How to Use the Direct Burial Lighting Connector
Step 1 — Open Top Locking Bolt
Turn the top locking bolt counter-clockwise until there is an open pathway through the front of the connector. No need to fully remove the locking bolt.
Step 2 — Strip, Fan & Insert
Strip wires 3/4"–1", fan and pre-twist the wire ends, then insert them into the connector as far as the wire will travel. Copper ends should be past the locking bolt.
Step 3 — Hand-Tighten Locking Bolt
No need to over-tighten. The locking bolt presses against the wire jacket and NOT the bare copper ends, giving it a better hold and a secure connection.
Step 4 — For a Clean Installation
Press the male end of one connector into the female end of another. This groups your connectors together, leaving a clean-looking installation.
Frequently Asked Questions
Have questions about the Q-Loc Direct Burial Connector? Find answers to the most common questions.
